Name: SkullSaints Onyx: Intel 12th Gen N100 Fanless Mini Industrial PC with 4x 2.5G Intel i226 LAN, WiFi 6, DDR5, NVMe, Soft Router Firewall, HDMI2.0, 13 Ports
Brand: SkullSaints
SKU: Onyx-Barebone
Price: 22500.0 INR
Availability: InStock

Skullsaints onyx: intel 11th gen n5105 fanless mini industrial pc with 4x 2.5g intel i226 i225 lan ddr4 nvme soft router firewall hdmi2.0 13

₹ 29,999.00 ₹ 22,500.00

Shipping calculated at checkout.

Variant

No RAM + No Storage

8GB DDR5 + 256GB NVME

Models

Onyx (4x2.5G LAN, 12th Gen N100, DDR5)

OnyxLite (2x1G LAN, 3205U, DDR3L)

Get a GST invoice by entering your GST number during checkout

pfSense® Support

in stock! Ships in 24-48 hours

1 Year Warranty

Bluedart, Delhivery

Free pickup and replacement

Prefer Amazon?

View on Amazon

ATTENTION! You will lose the following benefits:

Lower Prices: Enjoy prices lower than Amazon's standard rates.
Extended Warranty: Get a free 15-month warranty (3 months more than Amazon's 12-month warranty).
Free Pickup and Replacement: Benefit from free pickup and replacement during the warranty period, unlike Amazon's paid service.
Complimentary Accessories: Receive a keyboard and mouse (worth Rs. 4000) at Rs.1000 only with your purchase
Priority Support: Access priority chat and call support for a seamless experience.
Exclusive Discounts: Unlock special discounts as a repeat buyer.
Direct from the Brand Owner: Buy the latest and greatest products directly from us, the brand owner.

[{"id":45353717367038,"title":"No RAM + No Storage","option1":"No RAM + No Storage","option2":null,"option3":null,"sku":"Onyx-Barebone","requires_shipping":true,"taxable":true,"featured_image":{"id":42541423952126,"product_id":8065755775230,"position":6,"created_at":"2024-07-24T12:12:57+05:30","updated_at":"2024-07-24T12:12:57+05:30","alt":"Skullsaints onyx: intel 11th gen n5105 fanless mini industrial pc with 4x 2.5g intel i226 i225 lan ddr4 nvme soft router firewall hdmi2.0 13","width":2472,"height":2468,"src":"\/\/www.electroniksindia.com\/cdn\/shop\/files\/skullsaints-onyx-intel-12th-gen-n100-fanless-mini-industrial-pc-with-4x-2-5g-intel-i226-lan-wifi-6-ddr5-nvme-soft-router-firewall-hdmi2-0-13-ports-261.webp?v=1721803377","variant_ids":[44055143481598,45353717367038]},"available":true,"name":"SkullSaints Onyx: Intel 12th Gen N100 Fanless Mini Industrial PC with 4x 2.5G Intel i226 LAN, WiFi 6, DDR5, NVMe, Soft Router Firewall, HDMI2.0, 13 Ports - No RAM + No Storage","public_title":"No RAM + No Storage","options":["No RAM + No Storage"],"price":2250000,"weight":1000,"compare_at_price":2999900,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"Skullsaints onyx: intel 11th gen n5105 fanless mini industrial pc with 4x 2.5g intel i226 i225 lan ddr4 nvme soft router firewall hdmi2.0 13","id":35282690965758,"position":6,"preview_image":{"aspect_ratio":1.002,"height":2468,"width":2472,"src":"\/\/www.electroniksindia.com\/cdn\/shop\/files\/skullsaints-onyx-intel-12th-gen-n100-fanless-mini-industrial-pc-with-4x-2-5g-intel-i226-lan-wifi-6-ddr5-nvme-soft-router-firewall-hdmi2-0-13-ports-261.webp?v=1721803377"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44055143481598,"title":"8GB DDR5 + 256GB NVME","option1":"8GB DDR5 + 256GB NVME","option2":null,"option3":null,"sku":"Onyx-8-256","requires_shipping":true,"taxable":true,"featured_image":{"id":42541423952126,"product_id":8065755775230,"position":6,"created_at":"2024-07-24T12:12:57+05:30","updated_at":"2024-07-24T12:12:57+05:30","alt":"Skullsaints onyx: intel 11th gen n5105 fanless mini industrial pc with 4x 2.5g intel i226 i225 lan ddr4 nvme soft router firewall hdmi2.0 13","width":2472,"height":2468,"src":"\/\/www.electroniksindia.com\/cdn\/shop\/files\/skullsaints-onyx-intel-12th-gen-n100-fanless-mini-industrial-pc-with-4x-2-5g-intel-i226-lan-wifi-6-ddr5-nvme-soft-router-firewall-hdmi2-0-13-ports-261.webp?v=1721803377","variant_ids":[44055143481598,45353717367038]},"available":true,"name":"SkullSaints Onyx: Intel 12th Gen N100 Fanless Mini Industrial PC with 4x 2.5G Intel i226 LAN, WiFi 6, DDR5, NVMe, Soft Router Firewall, HDMI2.0, 13 Ports - 8GB DDR5 + 256GB NVME","public_title":"8GB DDR5 + 256GB NVME","options":["8GB DDR5 + 256GB NVME"],"price":2399900,"weight":1000,"compare_at_price":2999900,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"Skullsaints onyx: intel 11th gen n5105 fanless mini industrial pc with 4x 2.5g intel i226 i225 lan ddr4 nvme soft router firewall hdmi2.0 13","id":35282690965758,"position":6,"preview_image":{"aspect_ratio":1.002,"height":2468,"width":2472,"src":"\/\/www.electroniksindia.com\/cdn\/shop\/files\/skullsaints-onyx-intel-12th-gen-n100-fanless-mini-industrial-pc-with-4x-2-5g-intel-i226-lan-wifi-6-ddr5-nvme-soft-router-firewall-hdmi2-0-13-ports-261.webp?v=1721803377"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Media Coverage

Introducing Upgraded Onyx

Introducing the new Onyx! Now equipped with a 30% faster Intel Alder Lake N100 processor and upgraded DDR5 memory, delivering an even better performance.

RAM and Storage Installation Tutorial

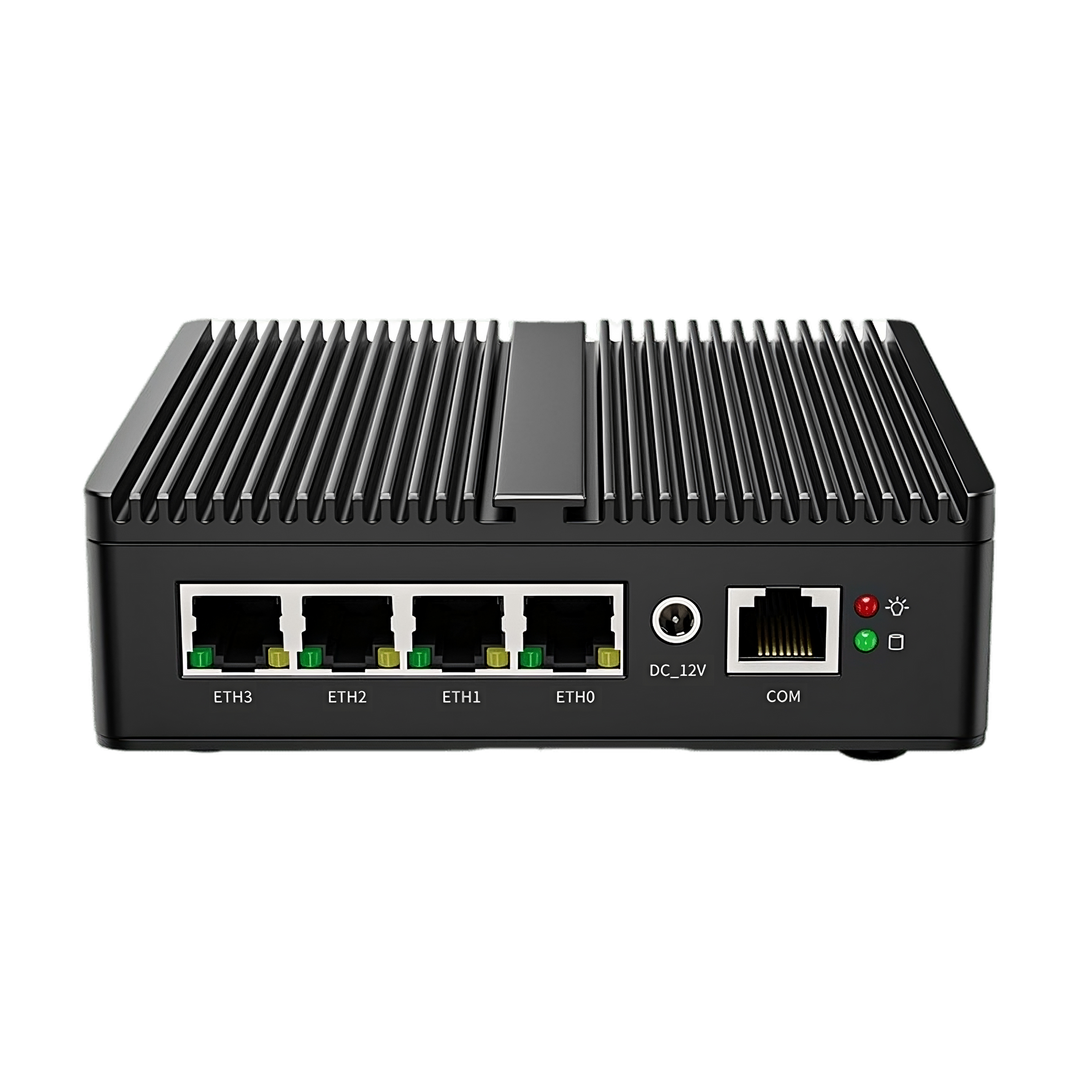

4 adaptive ports

2.5G Intel LAN

Our industrial mini PC features four LAN ports, providing multiple networking options for enhanced connectivity. With the inclusion of the Intel I226 2.5G adaptive network card interface, it ensures high-speed and reliable network performance for demanding industrial applications.

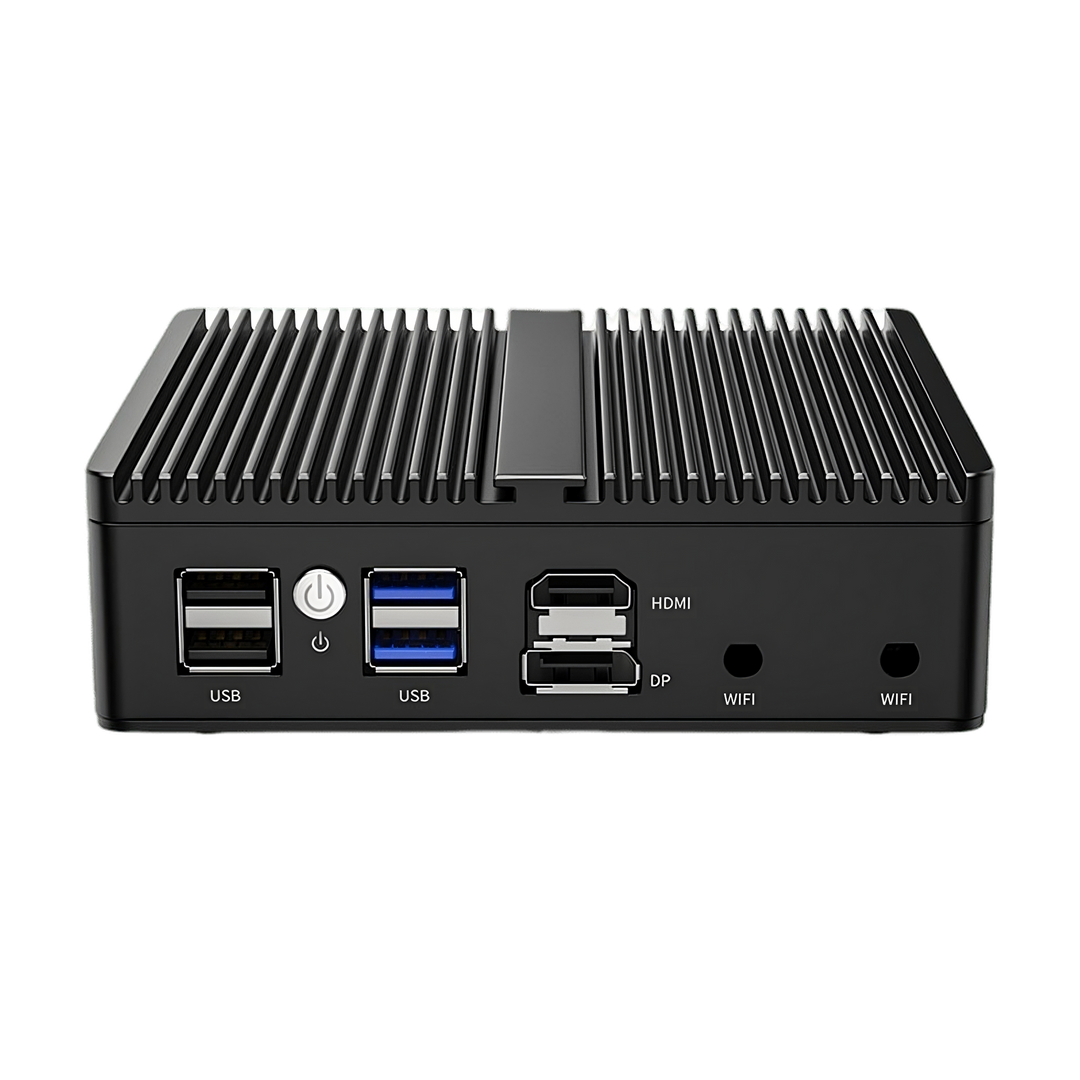

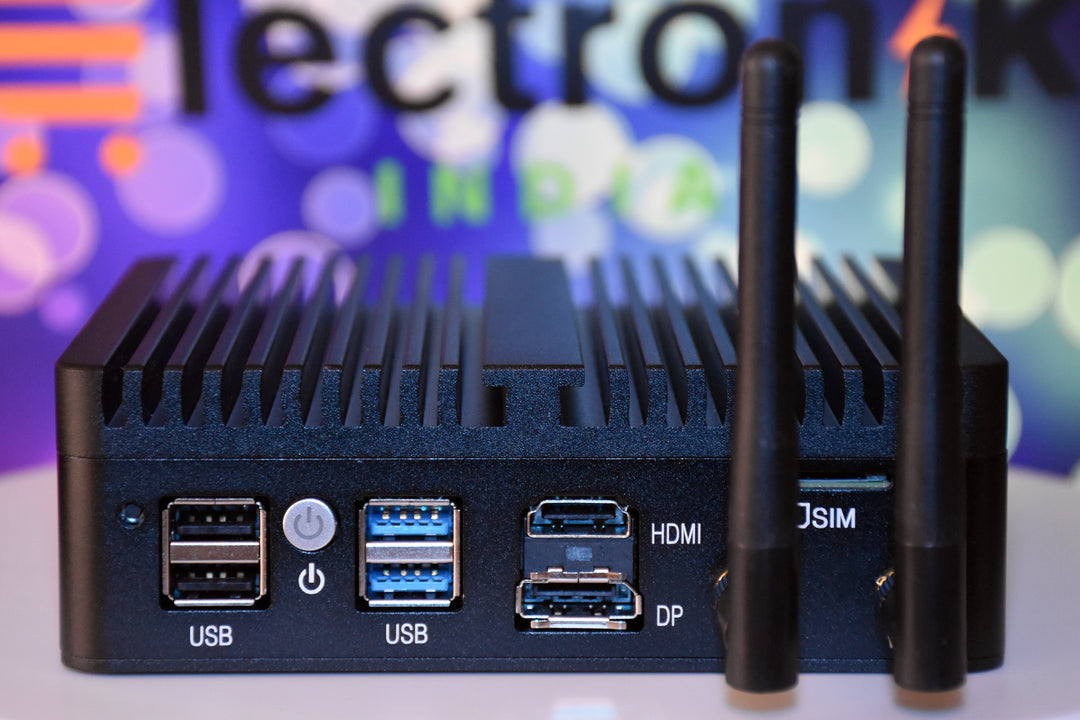

13 Ports

Rich Interface

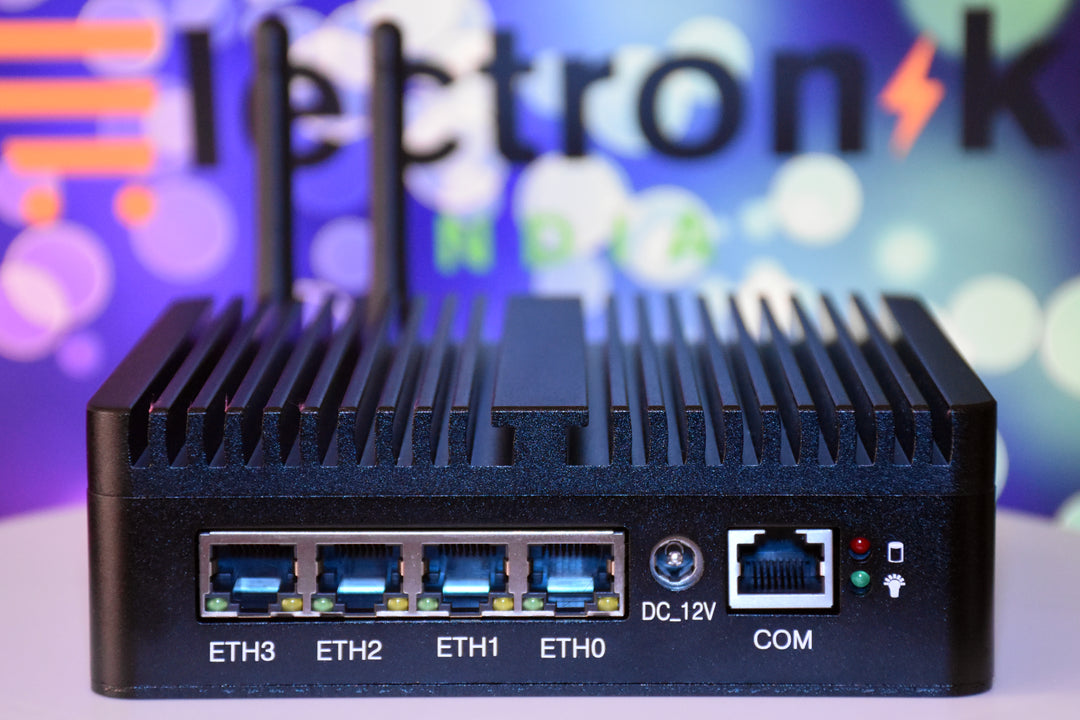

4 x 2.5G Intel I226 LAN
1 x RJ45 COM
2 x USB 2.0
2 x USB 3.0
1 x HDMI (with output audio)
1 x DP
2 x WiFi Antenna

Wide Range of Applications

Onyx offers distinct advantages over standard PC computers in terms of its compact size, extended lifespan, continuous 24/7 operation, space-saving design, and exceptional suitability for industrial scenarios

Proxmox Vmware

Connect to TV

Projector

Edge Computing

Virtualization

Good for firewall but very pricy

This is good choice for a home/soho firewall using pfsense or opnsense but price is almost is very high. You can buy much more powerful used desktops for this price. Only advantage is its small form factor.

Thank you for your feedback on the SkullSaints Onyx industrial PC. We're glad to hear that it is a good choice for a home/soho firewall with pfsense or opnsense. We understand your concern about the price and we appreciate your honest feedback. Our team is always striving to provide the best products for our customers and we will definitely take your comments into consideration. Thank you for choosing SkullSaints and we hope you continue to enjoy your purchase.

Thank You

Thank You

Onyx Mini pc is very good, buying experience can be improved

The onyx pc 4x2.5G is very good. I liked the configuration, quality of parts, aluminium case and accessories. It runs warm though, as a fanless tiny unit, it was expected.

Accessories include a 12v/5A delta adapter of very good quality, a hdmi cable and a wall mounting kit.

The mini pc is populated with 8gb ddr5 sodim from Samsung and 256gb SSD from LuminouTEK. Everything else was there in the package as promised.

I had no issues, when powering on. Just connected HDMI port to monitor, powered it on and got a working windows 11 PC.

I could also run Ubuntu 24.1 without any issues, default installation took care of all the hardware.

It consumed around 12 watts of power when idling and around 23 watts on full load. The N100 processor could run at 3.3 GHz+ when loaded on single core and at 2.9GHz when all cores were loaded. This is as expected. No thermal throttling was seen.

At full load (playing a 4k video and running sysbench cpu on all 4 cores), the cores reached a maximum temperature of 75 degree Celsius (at ambient of 25 Celsius). The case reached a maximum temperature of 52 degree Celsius. This makes touching the case little uncomfortable. As a fanless unit, I knew what I had signed up for. Just make sure there is enough air flow around the unit and don't stack anything on top of it.

As far as the performance is concerned, it was pretty good for the price. I tried browsing, watching videos and opening few apps. Everything went as expected.

I would have preferred a manual to go along, a softcopy or hardcopy. The RTC coin battery is not attached to the board which makes changing it in future little cumbersome.

Had delays in product shipment, when I escalated it they handled it. But with little streamlining of communications and proactive actions, it could have been avoided. I reduced a star for that and lack of documentation. Otherwise it's all good so far.

Awesome Little Silent PC

Very good low power PC for tinkering. Great build quality. Quick delivery.
Was running very hot (80 C) and saw that the thermal paste was not applied on to the CPU
Applied it and now the PC runs at 50 C

Looking for improvements

Hi
Delivery experience of the unit was satisfactory and hardware is reliable but would appreciate to have feedback or guidance on
1) How the SIM slot can be used? And whether it is functional?
2) I wasn't able to retrieve the Windows License key as would like to temporarily install CentOS and later revert to Windows.
3) The unit should also be available with option of No OS or Linux as not all industrial PCs run on Windows, majority runs on Linux or its other flavours, this will make price more attractive.

Thanks
Sumit
