SkullSaints Intel का 12वीं पीढ़ी का एल्डर लेक प्रोसेसर, LPDDR5 4800MHz HDMI 4K@60Hz 3 स्क्रीन डिस्प्ले, डुअल ईथरनेट, क्यूब मिनी पॉकेट पीसी

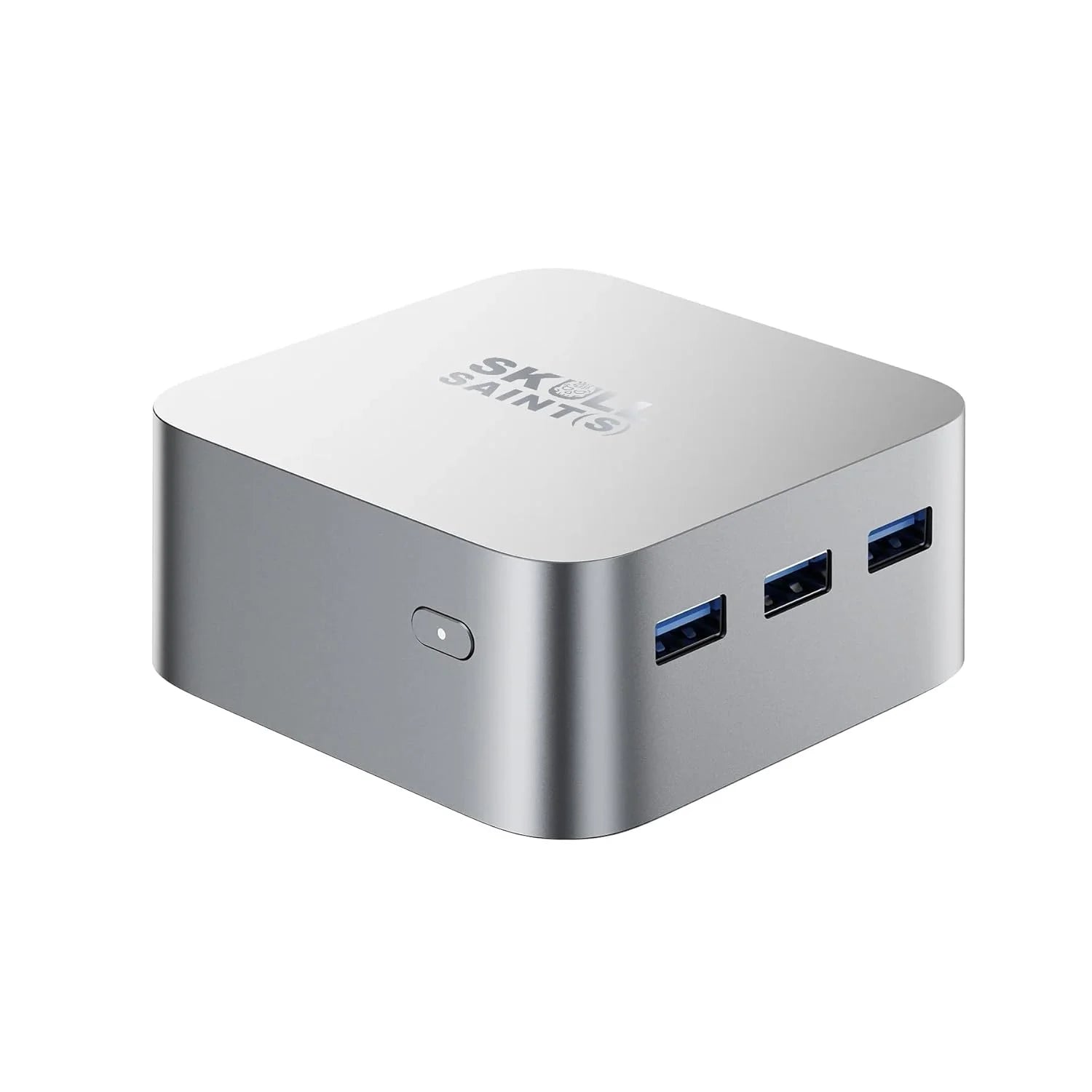

Product Appearance

• Device Size: 89.4mm x 89.4mm x 43.5mm
• Case Material: Plastic
• Weight: Net Weight 203.7g

System Hardware Configuration

CPU:

• Platform: Intel Alder Lake-N100
• Speed: 1.7GHz
• Max Frequency: 3.40 GHz
• Power Dissipation: 15W

Memory:

• Type: Onboard Samsung LPDDR5
• Capacity: Max 16GB

Storage:

• SSD: M.2 2242 NGFF/NVMe, Max 2TB
• 2.5'' HDD/SSD: No
• TF Card: No

RTC:

• BIOS Support: Real-time clock, timing boot

Auto Power On:

• BIOS Support: Yes

TPM:

• CPU Integration: Support TPM 2.0

Triple Display:

• Video Output: Supports three HDMI displays at the same time

LED:

• Status Indicator: The light is white

Network

WIFI:

• Model: M.2 E_key WIFI5
• Protocol: PCIE

Bluetooth:

• Version: Bluetooth 4.2

Ethernet:

• LAN1: 10M/100M/1000M Self-adaption

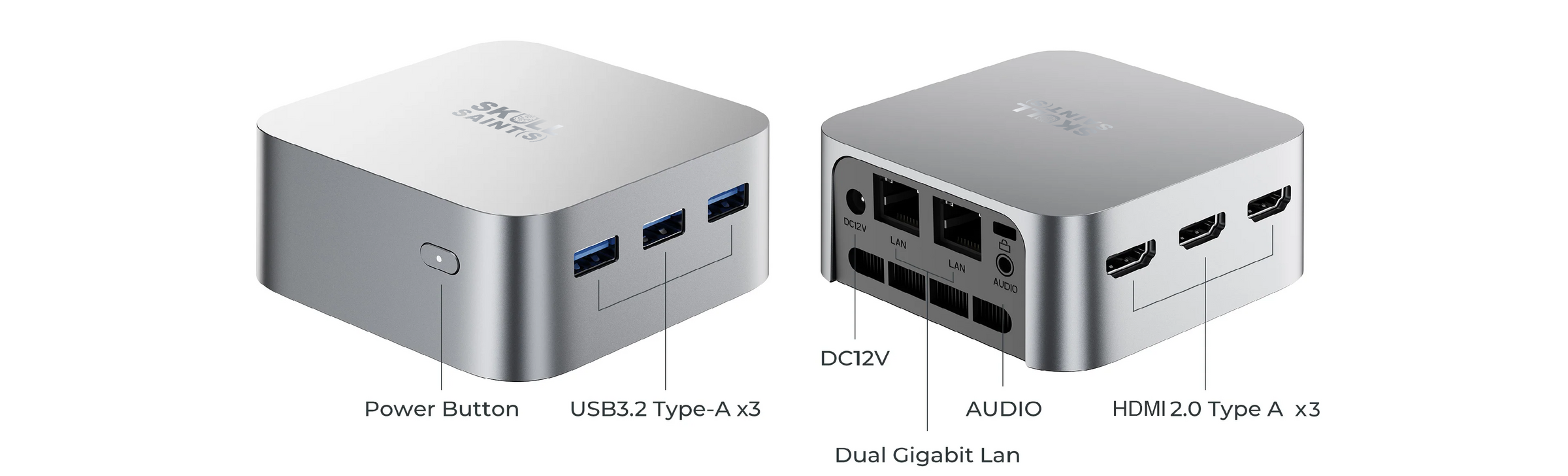

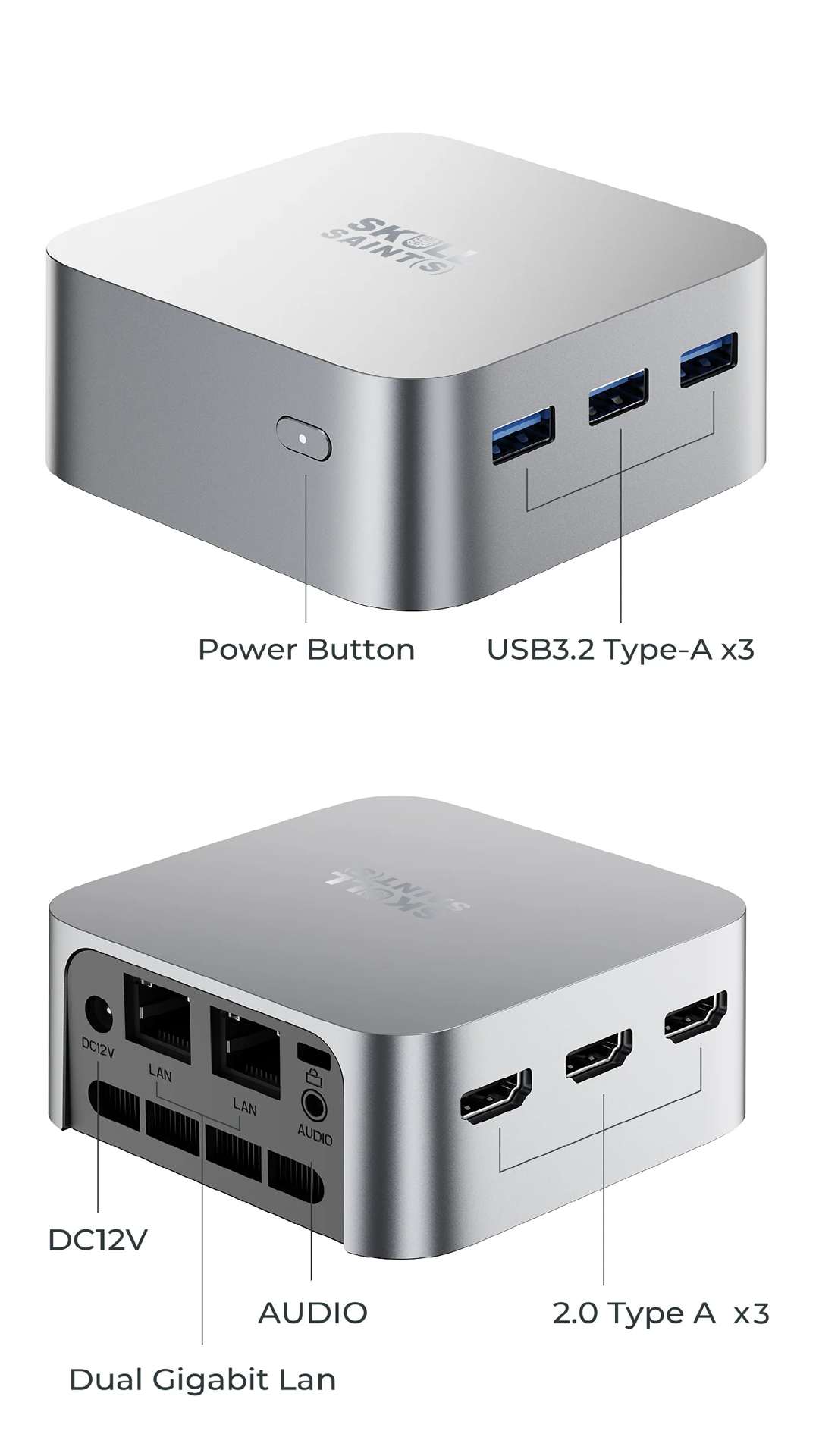

Ports

USB:

• USB2.0: No

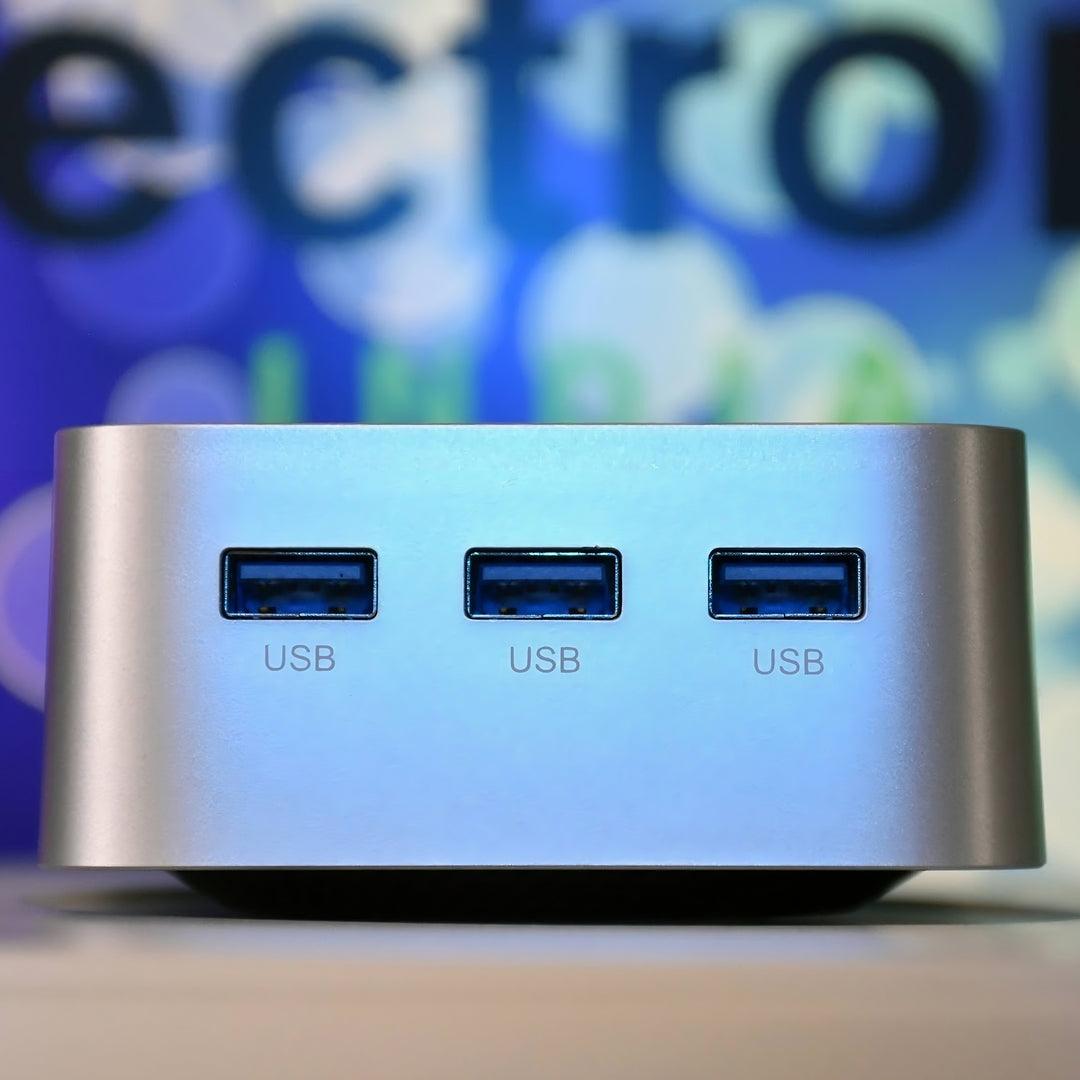

• USB3.0: USB3.0 -A x3

HDMI:

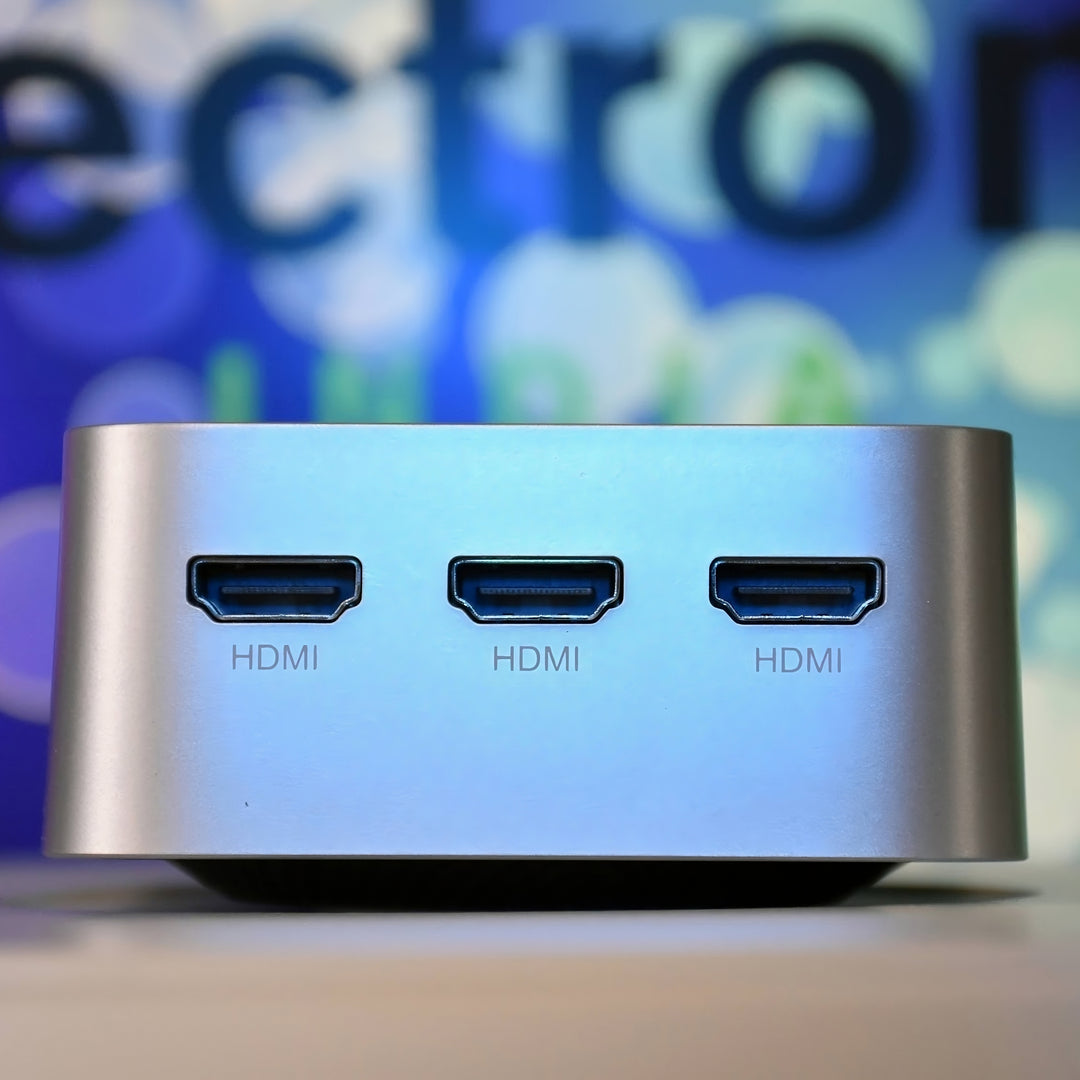

• Audio/Video Output: HDMI 2.0 A x3

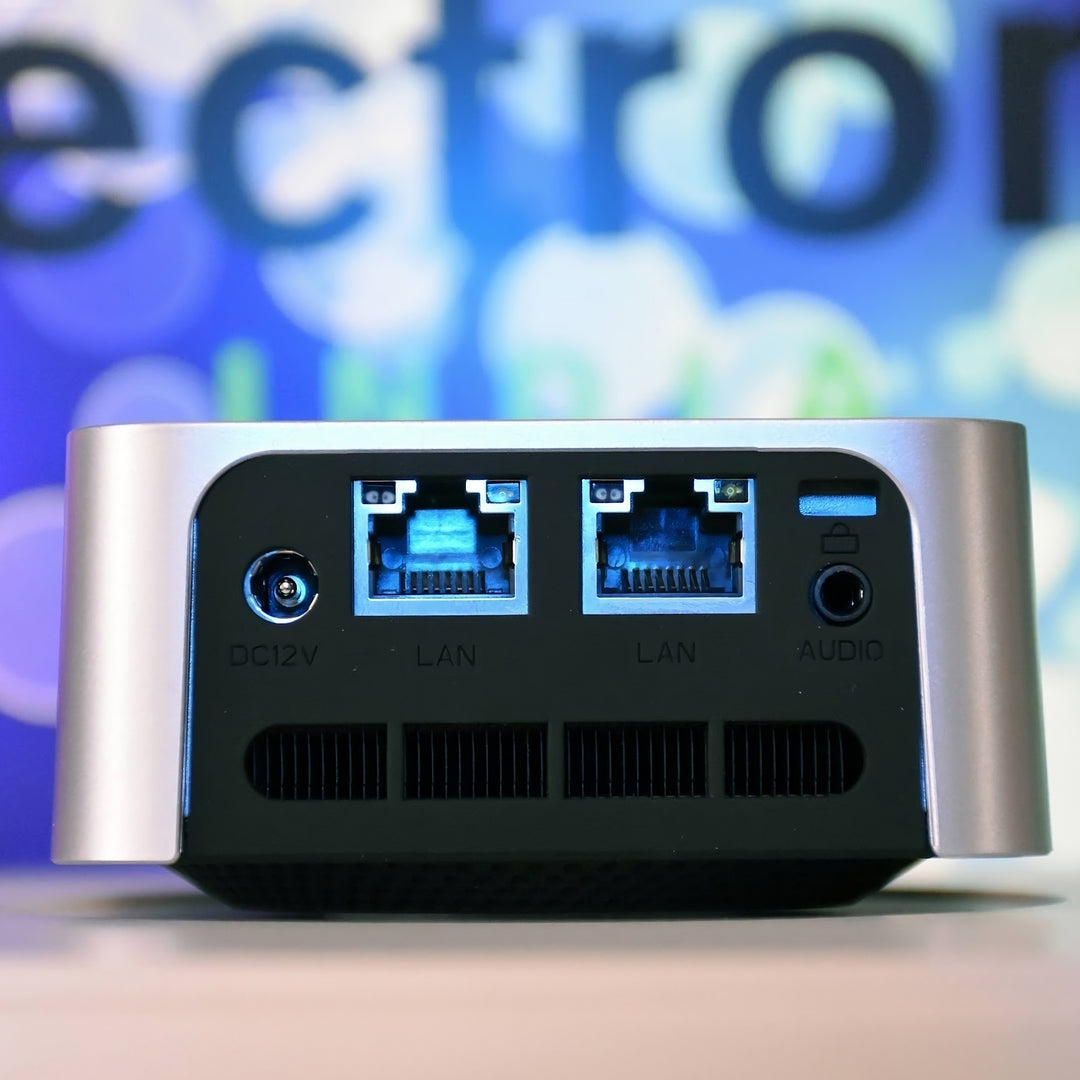

RJ45:

• Gigabit Ethernet: RJ45 x2

Power:

• Power Button: x1

DC IN:

• DC IN: 5.5/2.1mm DC Jack x1

Audio-in/out:

• Audio-in/out: 3.5mm Phone Jack x1 (Two-in-one interface)

Antenna1:

• FPC Antenna: WiFi 2.4+BT x1

Antenna2:

• FPC Antenna: WiFi 5.0

Applied Environment

Operating Temperature:

• 0~40℃

Storage Temperature:

• -20~60℃

Humidity:

• 90% @ 40 °C (without condensation)

Accessories

Adapter:

• Plug: Input 100~240V 50/60Hz, Output 12V/2.5A, DC 5.5*2.1mm

VESA:

• Support: Yes
