Specifications

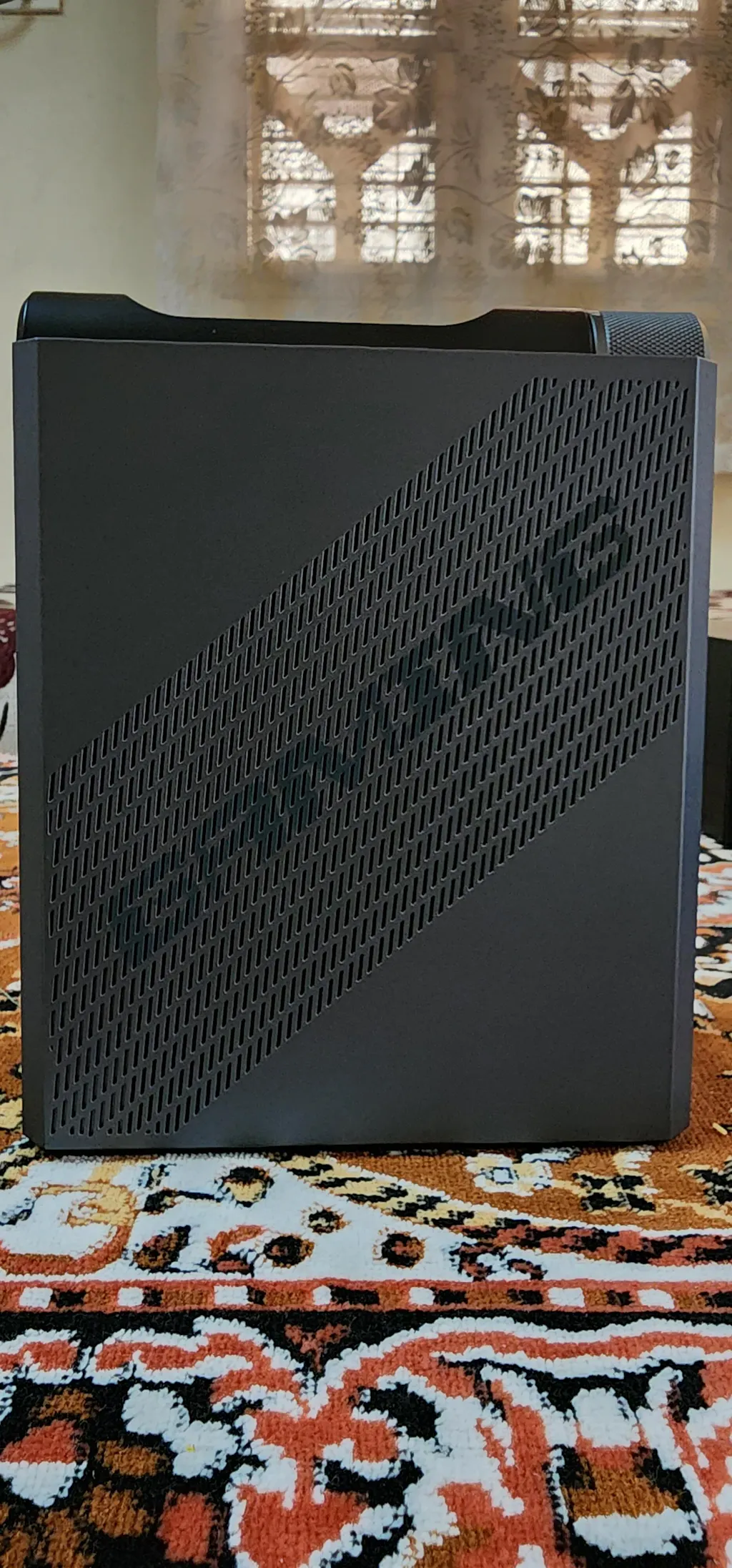

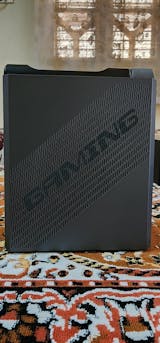

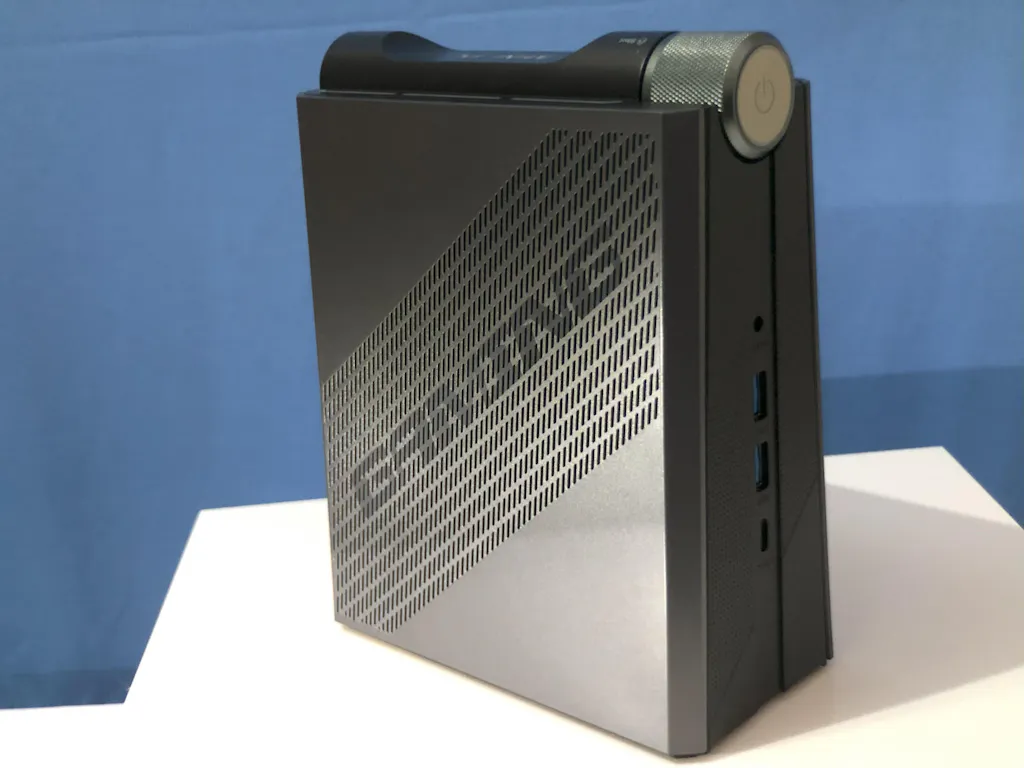

Product Appearance
- Special: Stand up mini PC
- Dimension: 188.5 x 149.6 x 77.8mm
- Case Material: Plastic
- Weight: Net Weight 836g
System Hardware Configuration
CPU:
- Model: AMD Ryzen™ 9 6900HX
- Speed: 3.3GHz
- Max. Turbo Speed: 4.9GHz
- Power Consumption: 45W
- Total Cores: 8
- Total Threads: 16
- GPU: AMD Radeon™ 680M
Memory:
- Model: DDR5*2 4800Mhz
- Capacity: 64GB
Storage:
- SSD: M.2 2280 NVME/NGFF, Max 2TB
- 2.5'' SSD: 2.5'' SATA, Max 2TB
RTC:
- BIOS: Real-time Clock, Time Boot
Auto Power On:
- BIOS: Support auto power on after electrified
Diskless Network:
- BIOS: Support UEFI diskless startup
TPM:
- CPU integrates TPM: Support TPM 2.0
Triple Display:
- Video Output: HDMI*2 + Type C Triple Display
LED:
- Status Indication: /
Internet Connection
WIFI:
- Model: M.2 E_key WIFI6
- Protocol: PCIE
Bluetooth:
- Model: M.2 E_key
- Protocol: Bluetooth 5.2
Ethernet:
- LAN: 10M/100M/1000M Self-adaption
I/O
USB:
- USB3.0: USB3.0 -Ax4
HDMI:
- AV Output: HDMI 2.0 A x2
- Type-C: AV Output -c x1 (Support: data transmission / video output / audio output)
RJ45:
- Gigabyte Ethernet: RJ45 x1
Power:
- Power Button: x1
- DC IN: Power Supply Input 5.5/2.1mm DC Jack x1
Audio-in/out:
- Audio-in/out: 3.5mm Phone Jack x1
Environment
Working Temperature:
- 0~40℃
Memory Temperature:
- -20~60℃
Humidity:
- 90% @ 40 °C (No Condensation)
Accessory
Power Supply:
- Vesa: Input 100~240V 50/60Hz, Output 19V/6.3A DC5.5*2.1mm
Future Proof
DDR5 4800MHz, 64GB max support; NVME&NGFF M.2 SSD compatibility, max 2TB, additionally expandable to 2TB with 2.5" HDD. Total 4TB.
Included
32GB Crucial DDR5 4800MHz
1TB Crucial NVME P3 upto 3500Mbps
3 Display Support
HDMI x 2 (4K@60Hz)
Type C x 1 (4K@60Hz)
